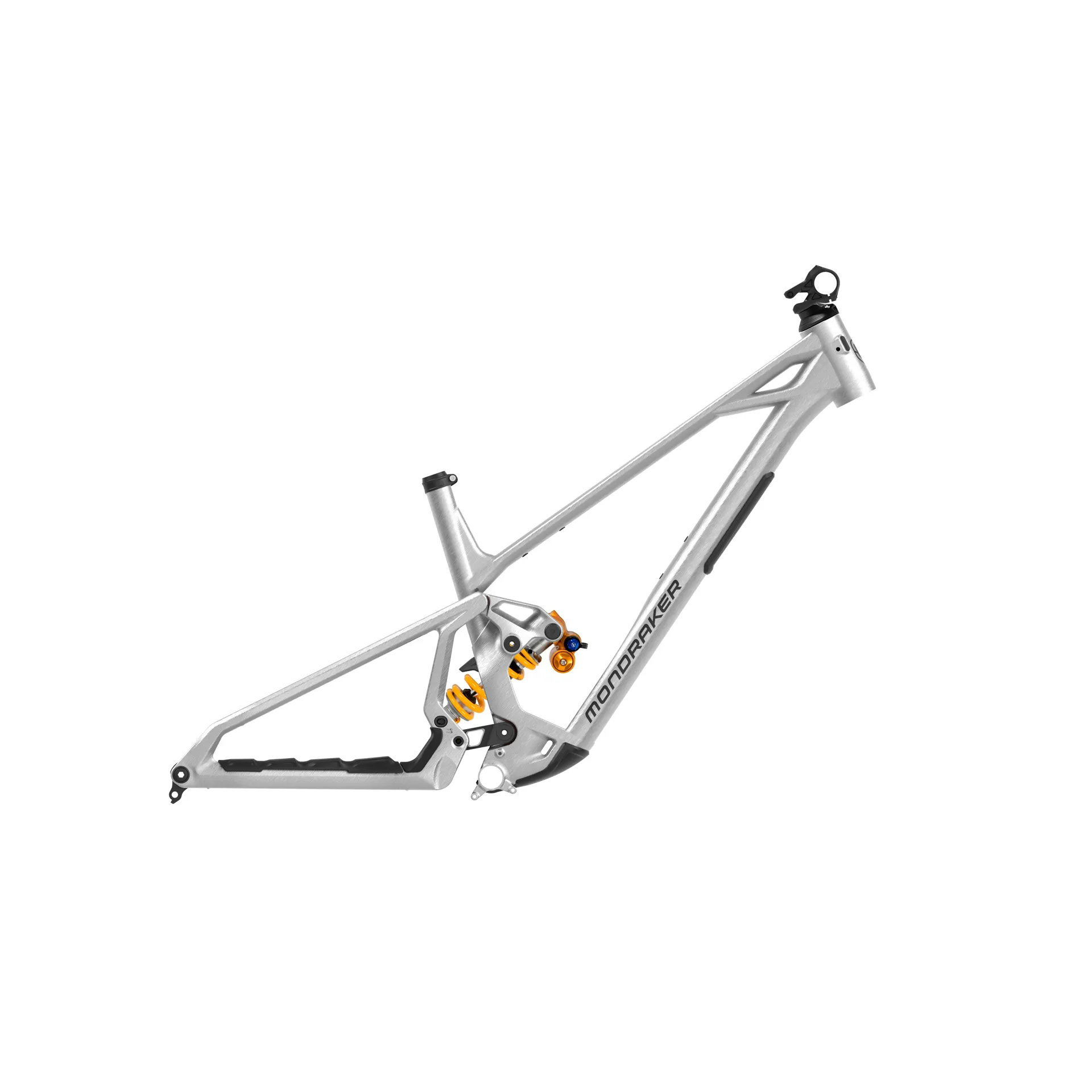

Mondraker ANARK XR Frameset in Raw Aluminium

Season:2027

Brand:Mondraker

Code:010.2608

The all-new ANARK enters the Mondraker gravity line-up for 2026, designed with a fun-first approach and slides straight into the bike park and freeride category.

ANARK brings modern geometry, kinematics and performance to the wilder side of riding. It’s about the most fun you can have on a mountain bike.We’re talking face aching grins; sock marks on dusty shins and that urge for one last party train.ANARK is all about getting in that bike park shred state.

Slappin’ turns and spraying dirt.

Bike parks and trails designed for maximum fun are on the up, andthe new ANARK is the bike to find your shred state on.It builds on the success of the Foxy platform and pulls from the MFR race development programme to offer our most exciting long travel gravity rig to date.



SHUTTLE READY

Una protezione integrata sul tubo obliquo protegge il telaio dai danni e rende più rapidi e pratici i caricamenti sugli shuttle.

KEY FRAME FEATURES

Stealth Alloy EVO construction - 6061 series aluminium for optimum strength to weight ratio | Variable thickness hydro-formed tubing optimizes weight and stiffness | Compact, reinforced swingarm - designed to take on everything the trail throws at it | Internal cable routing | Rubber chainstay silencers

UNIFIED BEARING SIZE

Single bearing size on all pivot points, plus additional inner and out sealing Same set up as seen on SUMMUM and ZENDIT

KINEMATICS IN NUMBERS

Leverage ratio shows a 25% progression rate

With a 205x65mm rear shock, ideal for the application with coil spring rear shocks.

Anti-squat at sag is around 98%

Ideal number for its longer travel, capable, plush and efficient rear suspension. * Recommended sag is 30%

Anti-rise at sag is around 99.7%

Close to 100% for the most ideal and the most independent action of the rear brake with rear suspension performance.

Technical Information

Frame

Anark 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 170mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05

Sizes

S: 440mm / M: 460mm / ML: 480mm / L: 500mm / XL: 520mm

Rear shock

Ohlins TTX Coil Shock, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
